MAG 524 W3 4K SET TOP BOX

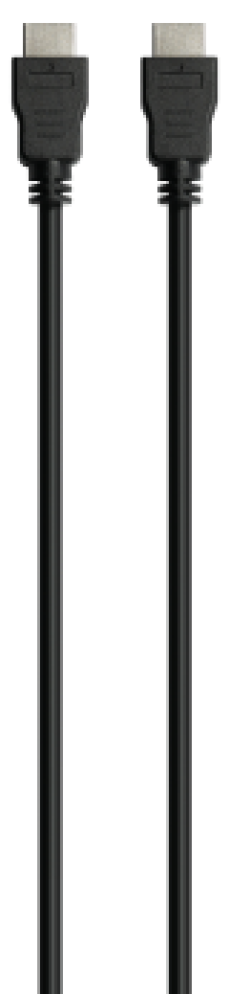

Box comes with MAG524W3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging. Fastest WIFI
$200.00
$160.00
- The device has an Amlogic S905X2 Chipset, 2T2R ac Wi-Fi module. It offers up to 100 Mbps in 2.4 GHz mode and up to 550 Mbps in 5 GHz mode. The device also has a built-in 100 Mbps Ethernet port.
- 100% authentic box from Infomir.
- 4K and HEVC support.
- HARDWARE ONLY, NO SUBSCRIPTION INCLUDED. NOT ALL THE SERVICE SUPPORTS THIS NEW MODEL. PLEASE CONFIRM WITH YOUR PROVIDER BEFORE YOU BUY.
- 4K and HEVC support, 512 MB RAM, 512 MB NAND, USB × 2 pcs. (3.0, 2.0), Built-in Wi-Fi (only for MAG420w1), Linux OS, HDMI, and RCA outputs
- The MAG420w1 has a built-in 802.11 b/g/n standard Wi-Fi module. This set-top box can be connected to the Internet wirelessly; no cables or additional accessories are necessary.
- 4K and HEVC support - The MAG524 easily handles 4K video. Thanks to the embedded HEVC codec (h.265), users can access UHD content, even with low Internet connection speeds.
Specifications
Dimensions
| Width/depth/height, (mm) | 132х87х26 |
| Weight, g | 128 |
Hardware
| Chipset | Hi3798MV200 |
| Processor | ARM Cortex-A53 Quad Core CPU 1200 MHz |
| Performance | 15 000 DMIPS |
| RAM | 512 MB |
| Flash memory | 512 MB NAND |
Software
| Operating system | Linux 4.4.35 |
| Middleware supported | Ministra TV platform version 5.4.1 or higher |
Interfaces
| RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Wi-Fi 1T1R n |
Sources of media content
| PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices |
Audio & video
| Audio сodecs | MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC |
| Audio formats | AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV |
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p |
| Video сodecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
| Image formats | JPEG, PNG, BMP, RAW |
