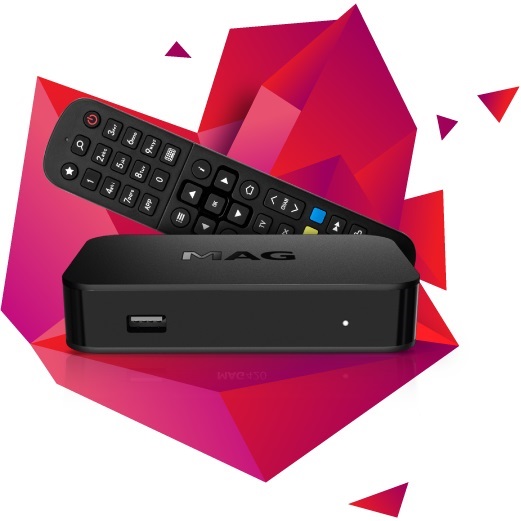

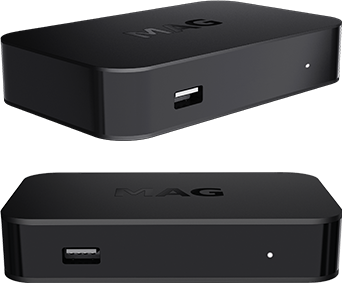

MAG 420 W1 4K SET TOP BOX
Box comes with MAG420w1 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
$160.00
$160.00
- The MAG420w1 has a built-in 802.11 b/g/n standard Wi-Fi module. This set-top box can be connected to the Internet wirelessly; no cables or additional accessories are necessary. Best device for IPTV. This device support 4K.
- MAG420 is a powerful and cost-effective solution for quickly launching IPTV/OTT projects. Thanks to the ARM Cortex-A53 processor on the Hi3798MV200 chipset and the built-in HEVC codec, this set-top box easily reproduces 4K content at 60 fps and does not create excessive network loading.
- MAG420 delivers pure surround sound with the help of built-in Dolby Digital six-channel audio support.
- 4K and HEVC support, 512 MB RAM, 512 MB NAND, USB × 2 pcs. (3.0, 2.0), Built-in Wi-Fi (only for MAG420w1), Linux OS, HDMI and RCA outputs
- The MAG420w1 has a built-in 802.11 b/g/n standard Wi-Fi module. This set-top box can be connected to the Internet wirelessly; no cables or additional accessories are necessary.
- 4K and HEVC support - The MAG420 easily handles 4K video. Thanks to the embedded HEVC codec (h.265), users can access UHD content, even with low Internet connection speeds.
Specifications
Dimensions

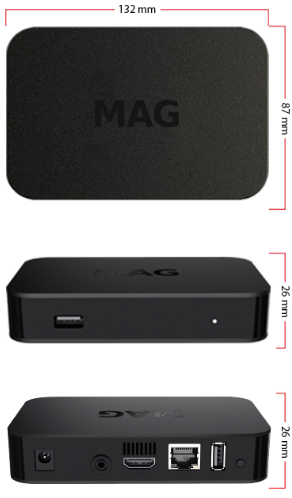

| Width/depth/height, (mm) | 132х87х26 |
| Weight, g | 128 |
Hardware
| Chipset | Hi3798MV200 |
| Processor | ARM Cortex-A53 Quad Core CPU 1200 MHz |
| Performance | 15 000 DMIPS |
| RAM | 512 MB |
| Flash memory | 512 MB NAND |
Software
| Operating system | Linux 4.4.35 |
| Middleware supported | Ministra TV platform version 5.4.1 or higher |
Interfaces
| RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Wi-Fi 1T1R n |
Sources of media content
| PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices |
Audio & video
| Audio сodecs | MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC |
| Audio formats | AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV |
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p |
| Video сodecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
| Image formats | JPEG, PNG, BMP, RAW |
